YL-09
Blector
30-100V
4±0.5mA
＜200mA
IP66
ABS
| Quantity: | |
|---|---|

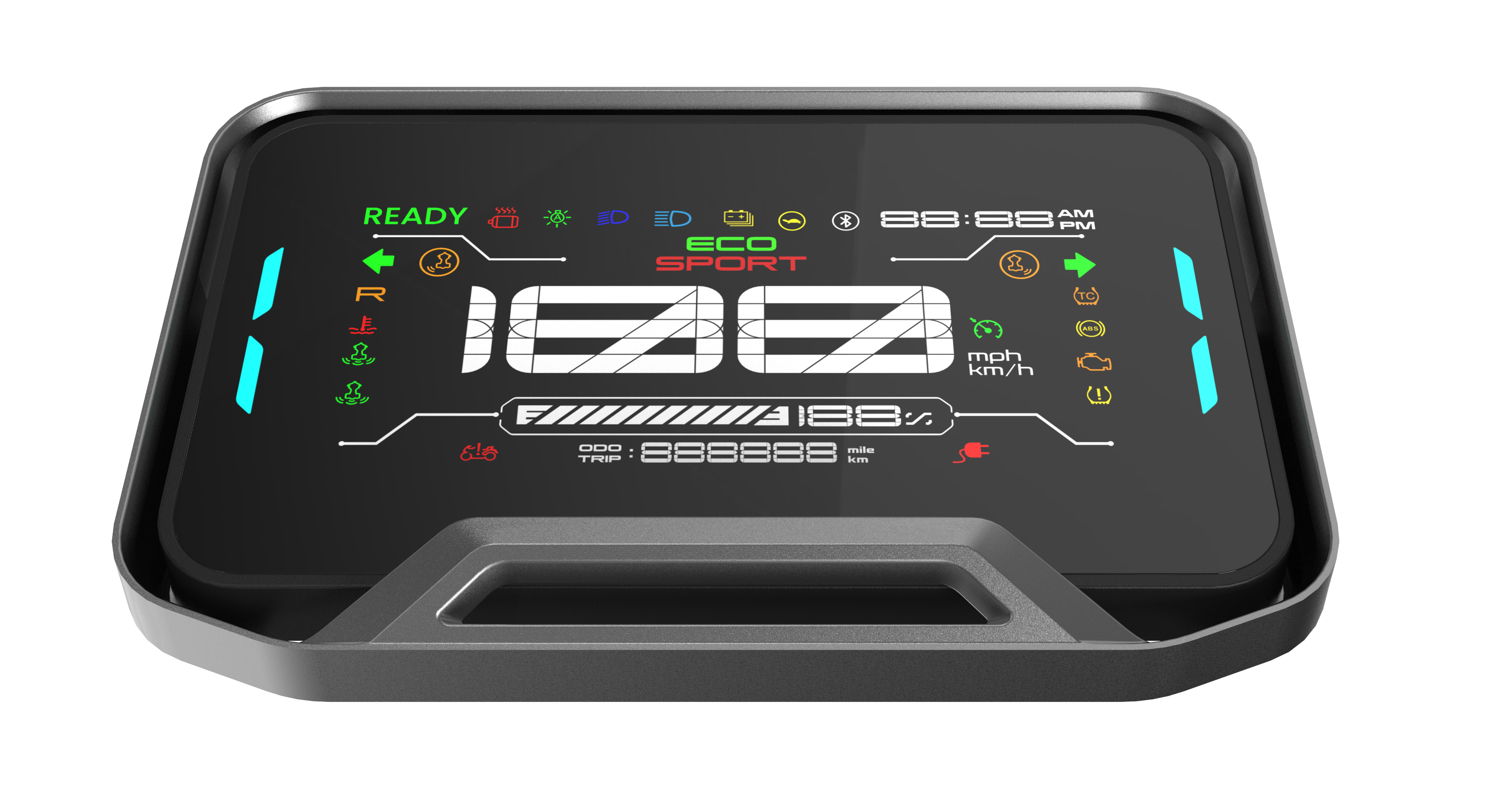

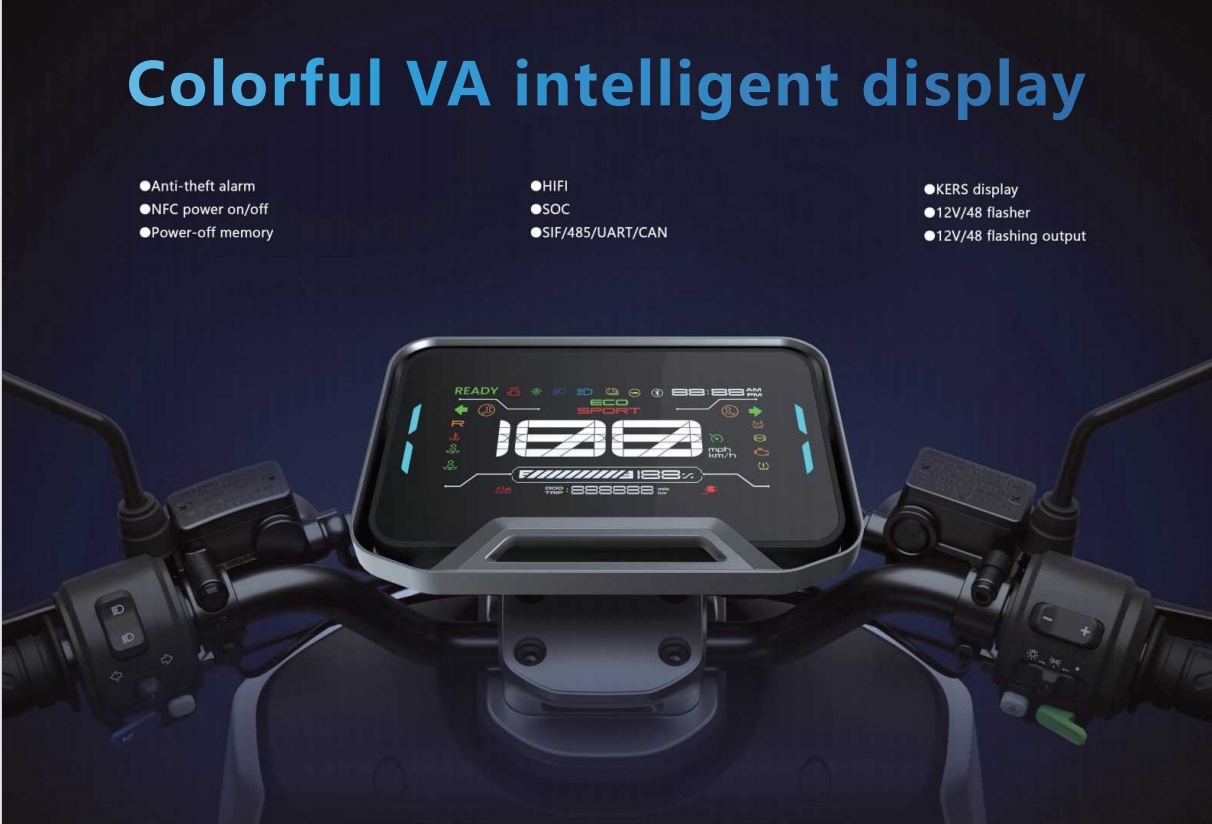

Blector YL-09 is a VA LCD display, which Can show you the battery status,ODO,SOC ,mode, error info and speed infromation directly. The alarm system and NFC power on/ off can be additional. Which can protect your e-scooter/e-motorcycle/mopeds much safer . Bluetooth or NFC power on/off function can be choosed. No need the keys,only with the NFC card, you can ride your e-vehicles.

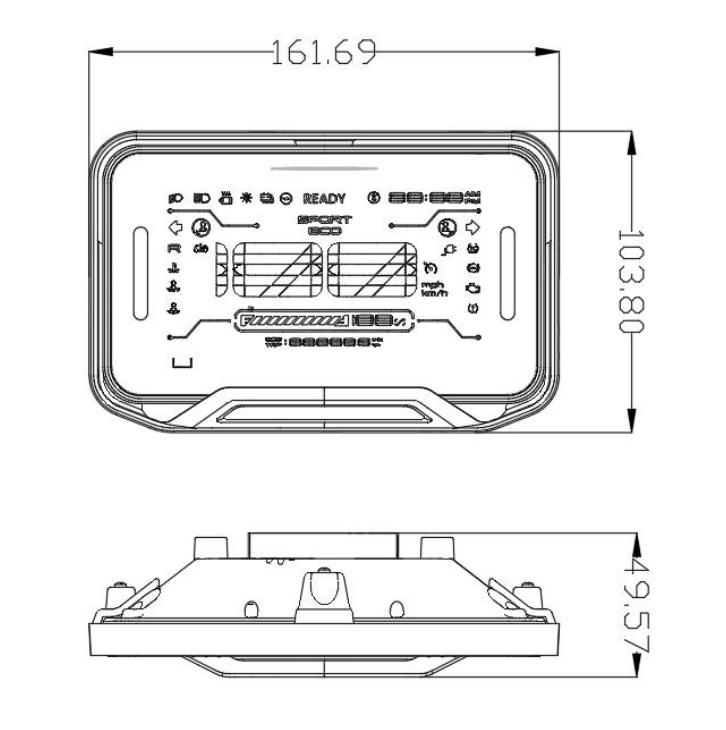

| Item No. | YL-09 | Size | 161.69*103.8*50mm |
| Voltage | 30-100V | Material | ABS |
| Dynamic current | ＜200mA | Waterproof | IP66 |
Comunication protocol: one-line (SIF/CAN/UART)
Speed display
ODO display
Battery status display
Mode/ gear display (Mode : R , 1 , 2 , 3)
SOC display
Turning lights display
Fixed-speed cruise sign
Error indication
Pls note: This speedometer cannot be adjusted by customers themselves.
Pls mark your vehicle wheel diameter, speed ratio and motor pole pairs when place a order, then we will debug for you before the shipment.
