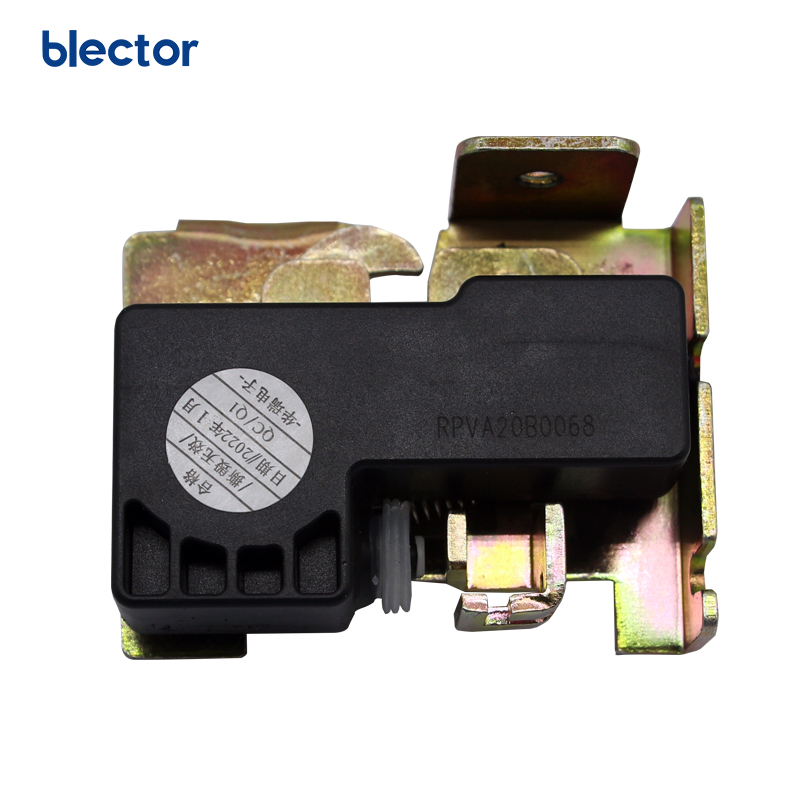

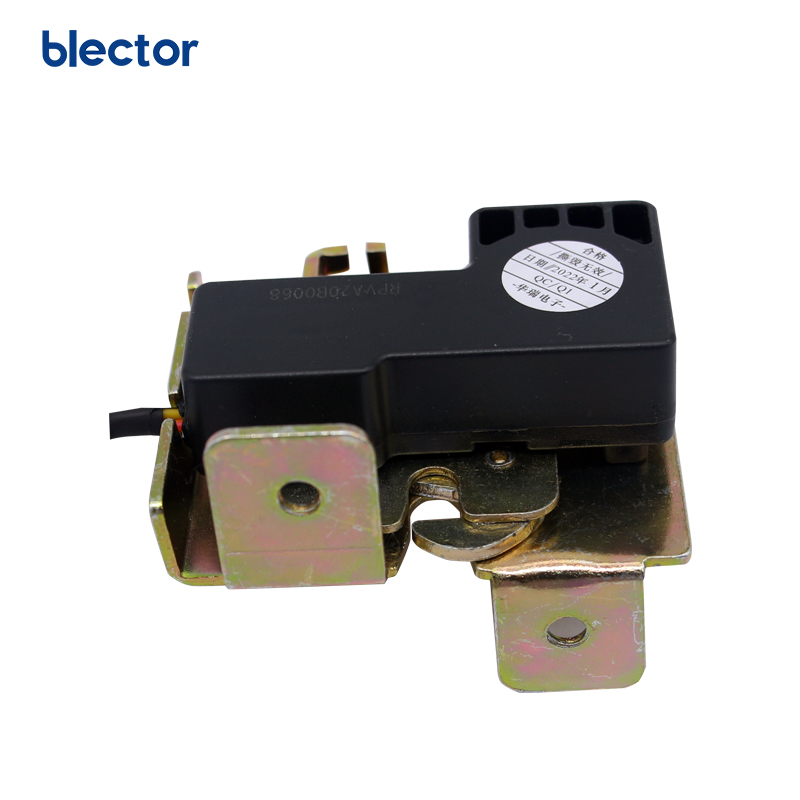

Smart 5V electric seat bag saddle lock for electric scooter/ mopeds SC-211

The electric scooter parts become more and more intelligent. The SC-211seat lock  is with DC motor. it can effectively anti-theft,anti-vibiration ,anti-pry,much safer for sharing scooter, fast and easy locking
  • SC-211

  • Blector

  • 5V

  • <500mA

  • IP67

  • DC motor

Availability:
Quantity:

electric seat bag  saddle lock for electric scooter/ mopeds SC-211

The SC-211 is a new designed lock specially for the intelligent scooter /mopeds saddle bag/seat bag. With the invisiable lock,it can effectively anti-theft,anti-vibiration ,anti-pry,much safer for scooter sharing business。App one-click quick power change , more convinent for sharing operator ro manager vehicles and can reduce operating costs.

Specification of saddle lock

Voltage
5V Motor type DC  motor
Voltage range 4.0~6.0V
Opening method
Electric/mechanical
Dynamic current <500mA Working temperature -20~70℃
Lock cycle 2.2s Waterproof IP67


Function and advantages of electric saddle lock

  • Easy to use: When parking your scooter,no need the mechanical key,you can open your saddle/seat bag box.

  • Invisible lock:The lock is installed inside the trunk / tour tail box, people can not see the lock,much safer.

  • Heavy duty and durable: The trunk / tour tail box lock uses the Zinc Alloy,SPCC material,DC motor,it can effectively anti-vibiration and anti-pry,heavy duty and durable.

  • Power safety: In case the power is off, the trunk / tour tail box lock has the emergency switch ,.It can also support the NFC card opening. Much safer

Size of electric trunk lock

electric seat bag lock size
